Key Highlights
01. Dual-Purpose Power & Welding
Functions as both a diesel generator and a welding machine, providing reliable power and welding capability in one unit.
02. Powerful Output
Delivers 1.8KW to 2.2KW of rated power with voltage options from 110V to 240V, ensuring versatility for different applications.
03 .Efficient Welding Performance
Offers a welding current range of 0-200A with up to 60% efficiency, suitable for various welding tasks.
04. Low Fuel Consumption
Equipped with air-cooled, direct injection diesel engines (418cc–498cc), ensuring fuel efficiency and long-lasting performance.
05. Low Noise Operation
Noise levels range from 68dB to 85dB, with silenced models for quieter performance in noise-sensitive environments.
06. Stable Voltage Output
Self-excited alternators with AVR technology ensure smooth and consistent power supply for both electrical and welding applications.
07. Portable & Convenient
Compact design with optional big wheels for easy transport, making it ideal for on-site work and remote locations.
08. Smart Safety Features

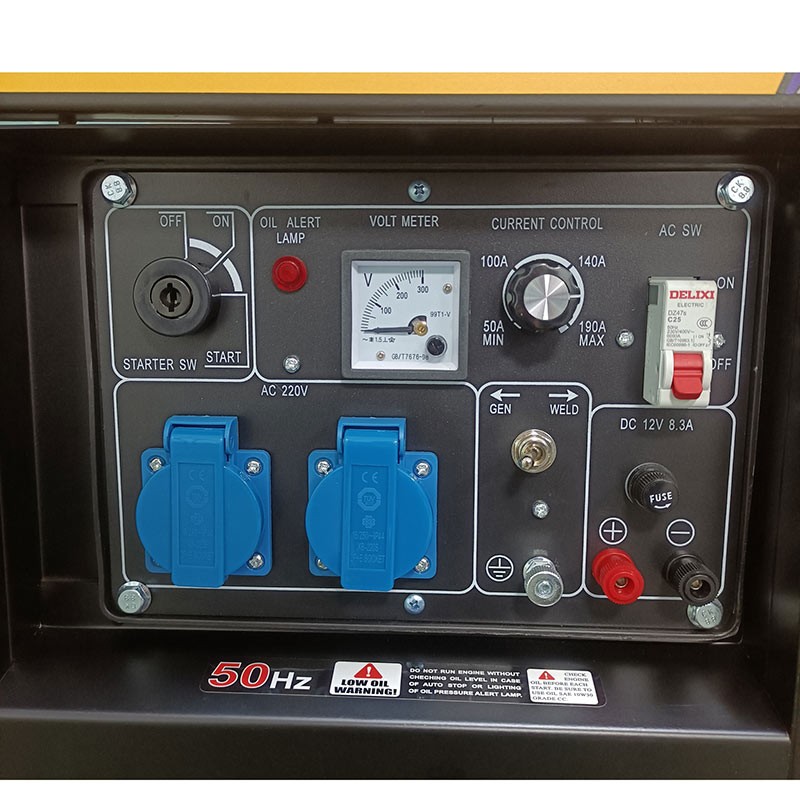

Includes voltmeter, AC output sockets, circuit breaker, and optional hour meter, enhancing user convenience and operational safety.

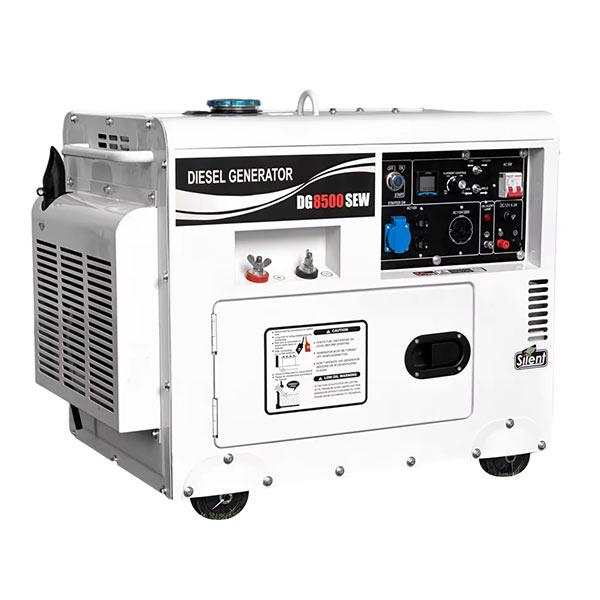

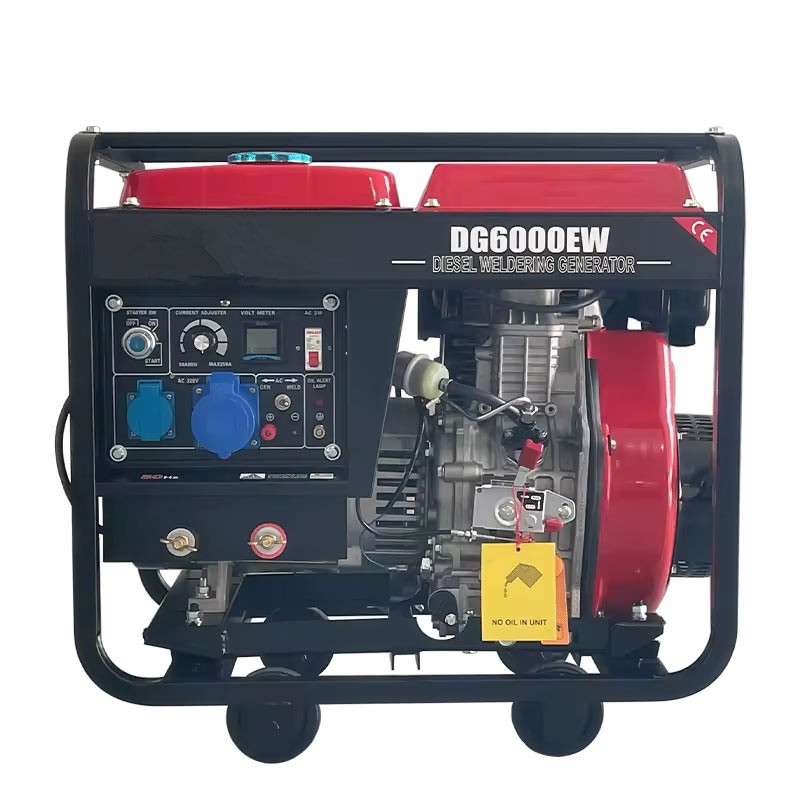

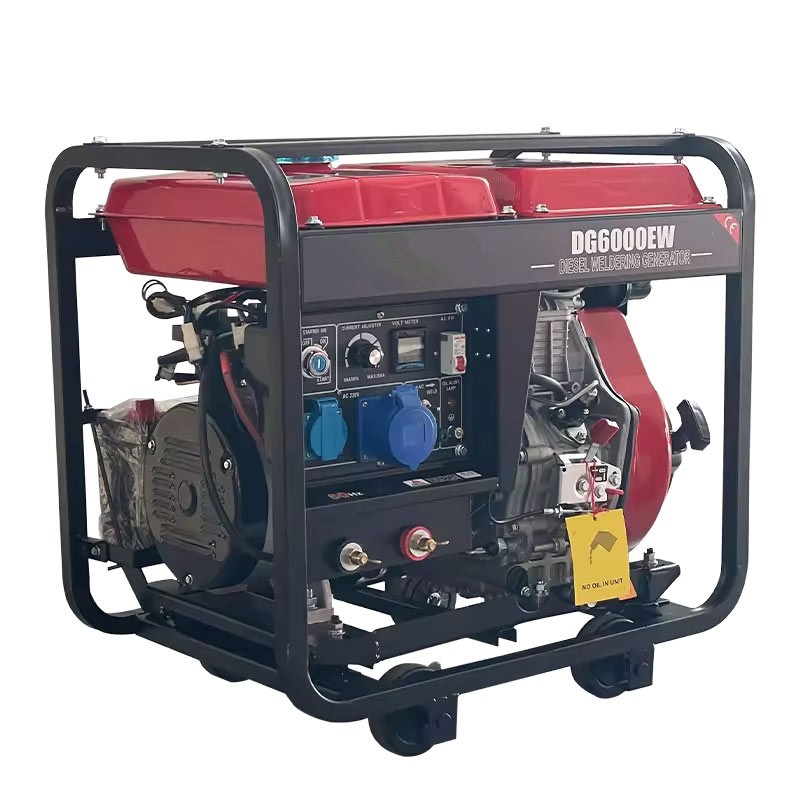

Model型号	DG6000EW	DG6500SEW	DG8000EW	DG8500SEW
Frequency频率(Hz)	50/60HZ		50/60HZ
Rated AC voltage额定电压(V)	110,220,230,240		110,220,230,240
Rated Current额定电流(A)	8.2/9.1		9.1/10.0
Rated Output额定输出(kW)	1.8/2.0		2.0/2.2
Rated Speed额定转速(rpm)	3000/3600		3000/3600
Welder电焊
Welding No-load Voltage焊接空压(V)	55-65		55-65
Working Voltage工作电压(V)	26-30		26-30
Rated Current额定电流(A)	160		160
Range Of Current电流范围(A)	0-180		0-200
Welding Efficiency焊接效率	60%		60%
Power Factor (cos4)功率因素
Phase相数	Single Phase单相		Single Phase单相
Noise Level(at 7m)7米处噪音(dB)	80-85 dB	68-72 dE	80-85 dB	68-72 dB
Engine发动机
Engine Model型号	186FA		192FC
Engine Type动力形式	single-Cylinder,Vertical,4-Stroke Air-Cooled Diesel Engine单缸，垂直，四冲程风冷柴油机
BoreXStroke缸径x行程(mm)	86×72		92×75
Displacement Capacity排量(cc)	418		498
Fuel燃油	0#or-10#Light Diesel Oil O#或者-10#清洁柴油
Lubrication OilVolume润滑油容量(L)	1.65
Combustion System燃烧系统	Direct Injection直喷式
Standard Features标准配置	Voltmeter,AC Output Socket,AC Circuit Breaker,Oil Alert
	电压表，交流插座，交流断路器，机油报警
Optional Features选配	Four Sides Wheels,Digital Meter,ATS,Remote Control
	万向轮，数控表，ATS,遥控启动
Dimension(LxWxH)包装尺寸(mm)	715×490×655	950×550×760	715×490×655	950×550×760
Gross Weight毛重(kg)	120	180	120	180
