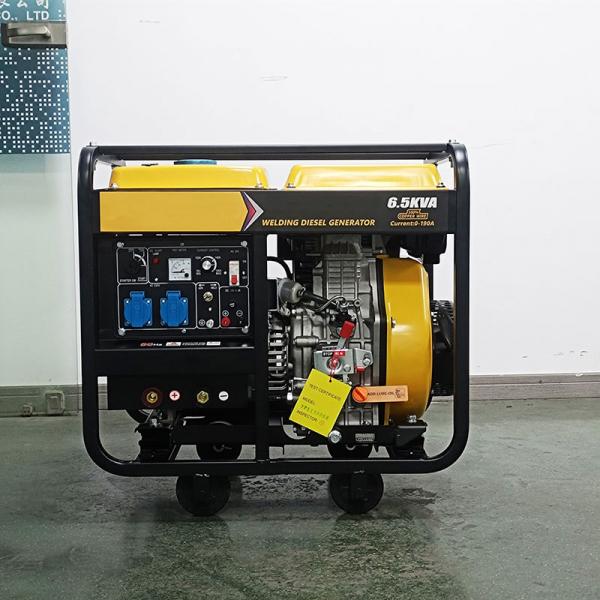

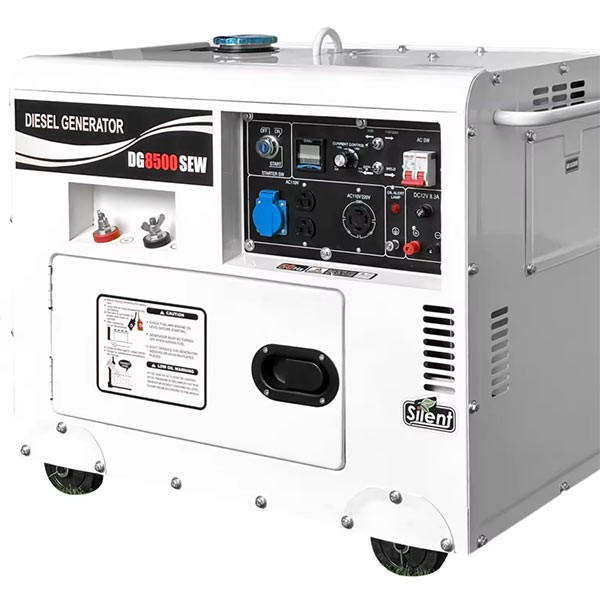

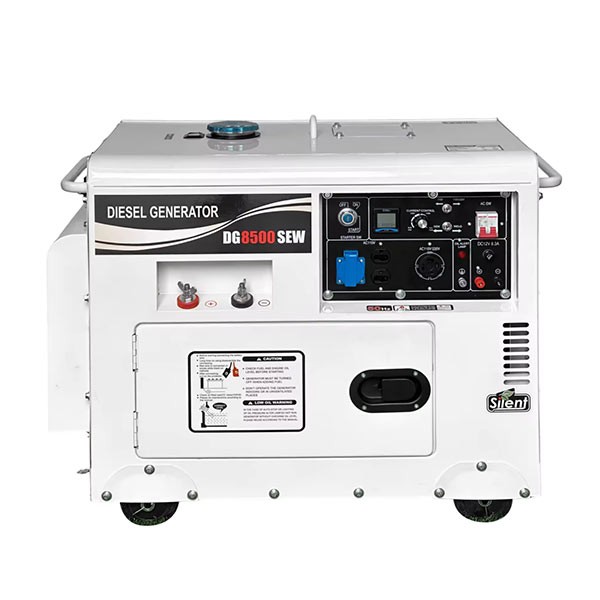

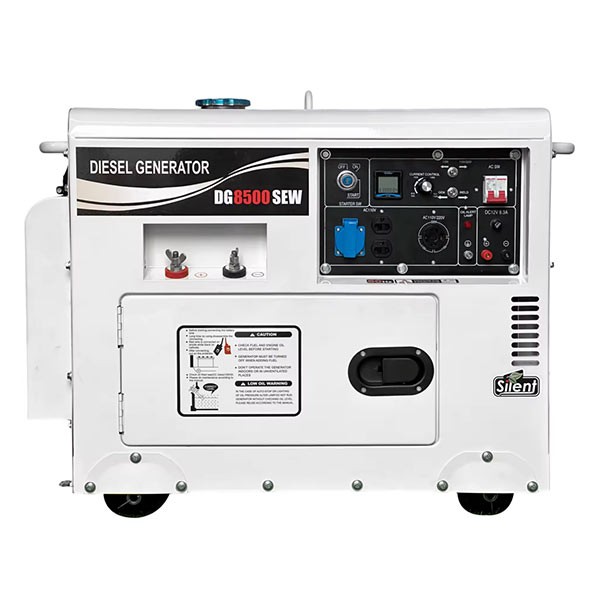

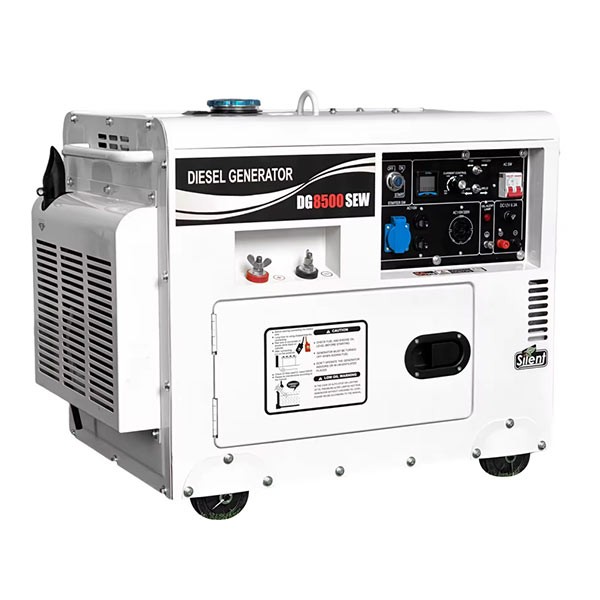

5KW Silent Type Diesel Welding Generator

Construction Sites – Reliable welding power for steel structures and fabrication
Industrial Fabrication – Essential for manufacturing and heavy-duty welding operations.
Pipeline & Offshore Welding – Designed for fieldwork where portability and power are critical.
Agricultural & Farm Equipment Repair – Ideal for on-site welding and maintenance tasks.

Emergency & Backup Welding – Ensures uninterrupted welding power in remote locations.

Model型号	DG6000EW	DG6500SEW	DG8000EW	DG8500SEW
Frequency频率(Hz)	50/60HZ		50/60HZ
Rated AC voltage额定电压(V)	110,220,230,240		110,220,230,240
Rated Current额定电流(A)	8.2/9.1		9.1/10.0
Rated Output额定输出(kW)	1.8/2.0		2.0/2.2
Rated Speed额定转速(rpm)	3000/3600		3000/3600
Welder电焊
Welding No-load Voltage焊接空压(V)	55-65		55-65
Working Voltage工作电压(V)	26-30		26-30
Rated Current额定电流(A)	160		160
Range Of Current电流范围(A)	0-180		0-200
Welding Efficiency焊接效率	60%		60%
Power Factor (cos4)功率因素
Phase相数	Single Phase单相		Single Phase单相
Noise Level(at 7m)7米处噪音(dB)	80-85 dB	68-72 dE	80-85 dB	68-72 dB
Engine发动机
Engine Model型号	186FA		192FC
Engine Type动力形式	single-Cylinder,Vertical,4-Stroke Air-Cooled Diesel Engine单缸，垂直，四冲程风冷柴油机
BoreXStroke缸径x行程(mm)	86×72		92×75
Displacement Capacity排量(cc)	418		498
Fuel燃油	0#or-10#Light Diesel Oil O#或者-10#清洁柴油
Lubrication OilVolume润滑油容量(L)	1.65
Combustion System燃烧系统	Direct Injection直喷式
Standard Features标准配置	Voltmeter,AC Output Socket,AC Circuit Breaker,Oil Alert
	电压表，交流插座，交流断路器，机油报警
Optional Features选配	Four Sides Wheels,Digital Meter,ATS,Remote Control
	万向轮，数控表，ATS,遥控启动
Dimension(LxWxH)包装尺寸(mm)	715×490×655	950×550×760	715×490×655	950×550×760
Gross Weight毛重(kg)	120	180	120	180
