Model
|
DG6500SE
|
DG7500SE
|
DG8500SE
|
DG10000SE
|
Unit
|
|
Rated Frequency
|
50
|
50
|
50
|
50
|
HZ
|
|
Rated Power
|
4.5
|
5
|
6.5
|
7.5
|
KVA
|
|
Max Power
|
5
|
5.5
|
7
|
8
|
KVA
|
|
Voltage
|
220
|
220
|
220
|
220
|
V
|
|
Current
|
22
|
25
|
29.5
|
36.3
|
A
|
|
Fuel Tank Capacity
|
16
|
16
|
16
|
25
|
L
|
|
Running Time
|
8
|
7.5
|
7
|
10
|
hr
|
|
Noise Level Behind 7m
|
72
|
72
|
72
|
72
|
dBA
|
|
DC Output
|
12/8.3
|
12/8.3
|
12/8.3
|
12/8.3
|
V/A
|
|
Battery
|
30
|
30
|
30
|
36
|
Ah
|
|
|
|
|
|
|
|
|
Engine Type
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
|
|
Engine Model
|
ND186FAE
|
ND188FAE
|
ND192FBE
|
ND198FBE
|
|
|
Power Output
|
6.6
|
7.5
|
8.5
|
9.9
|
kw
|
|
Starting Method
|
M/E
|
M/E
|
M/E
|
M/E
|
|
|
Displacement
|
418
|
456
|
498
|
633
|
cc
|
|
Oil Capacity
|
1.65
|
1.65
|
1.65
|
1.65
|
L
|
|
|
|
|
|
|
|
|
Rated Power
|
5
|
6
|
7
|
8
|
KVA
|
|
Power Factor
|
1
|
1
|
1
|
1
|
Cosφ
|
|
Voltage Regulation
|
Brush/AVR
|
Brush/AVR
|
Brush/AVR
|
Brush/AVR
|
|
|
|
|
|
|
|
|
|
N.W
|
152
|
156
|
170
|
210
|
kg
|
|
G.W
|
164
|
166
|
180
|
220
|
kg
|
|
Packing Size A&C Canopy
|
945x565x760
|
945x565x760
|
945x565x760
|
1100x735x760
|
mm
|

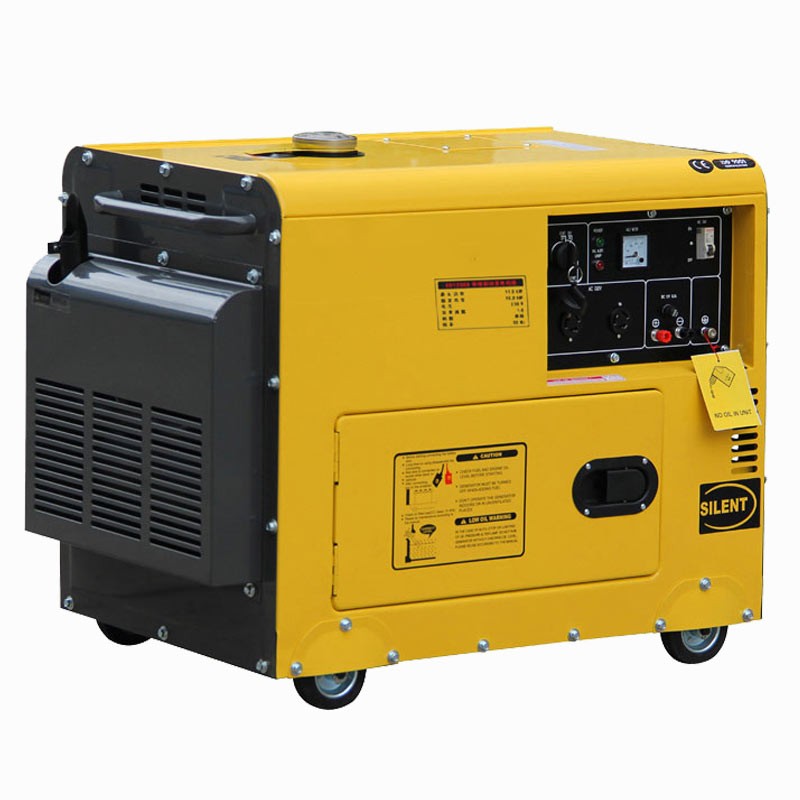

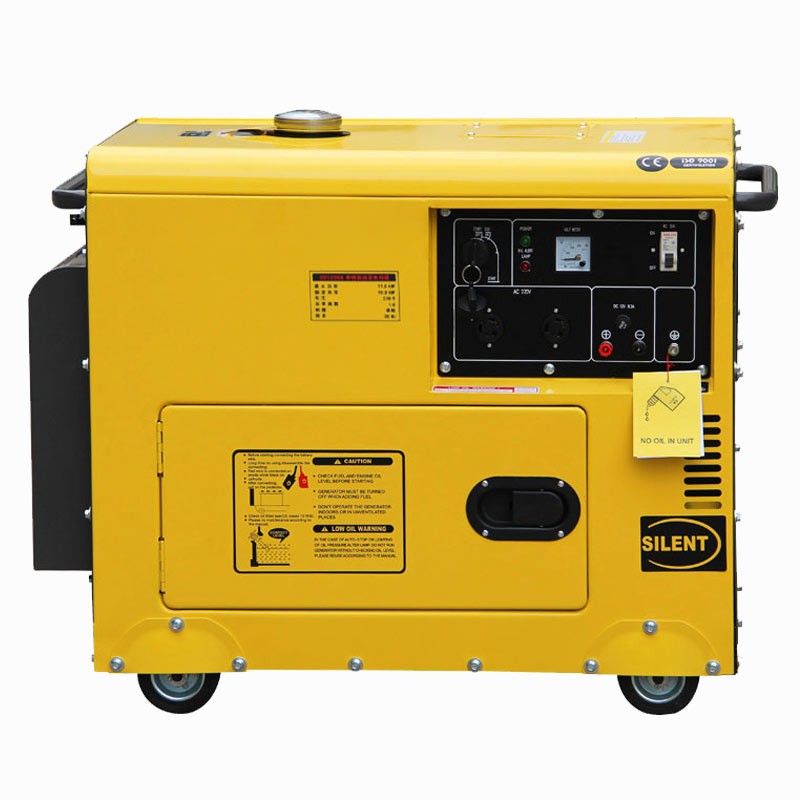

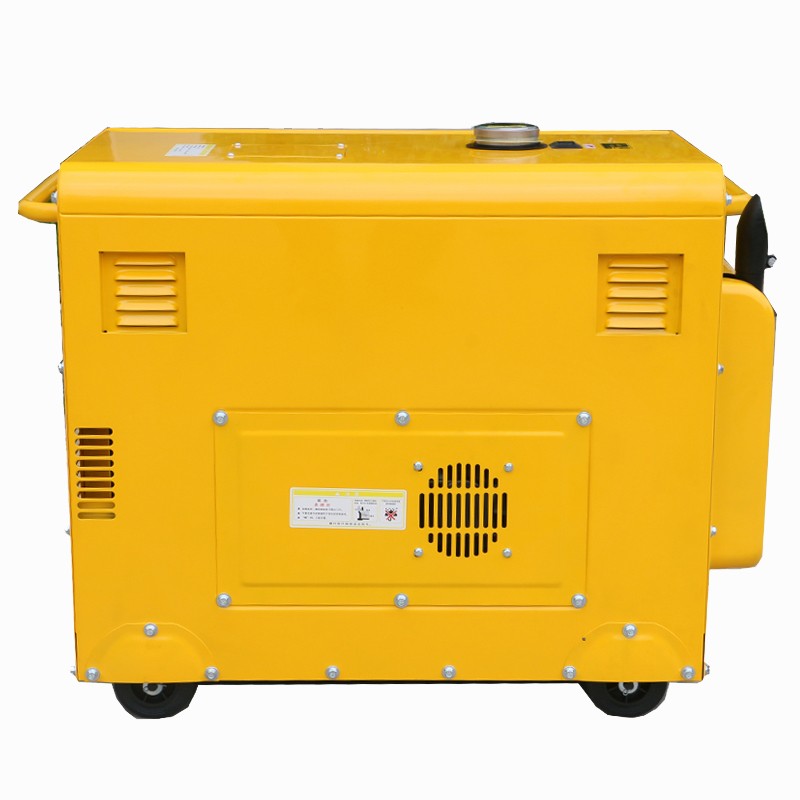

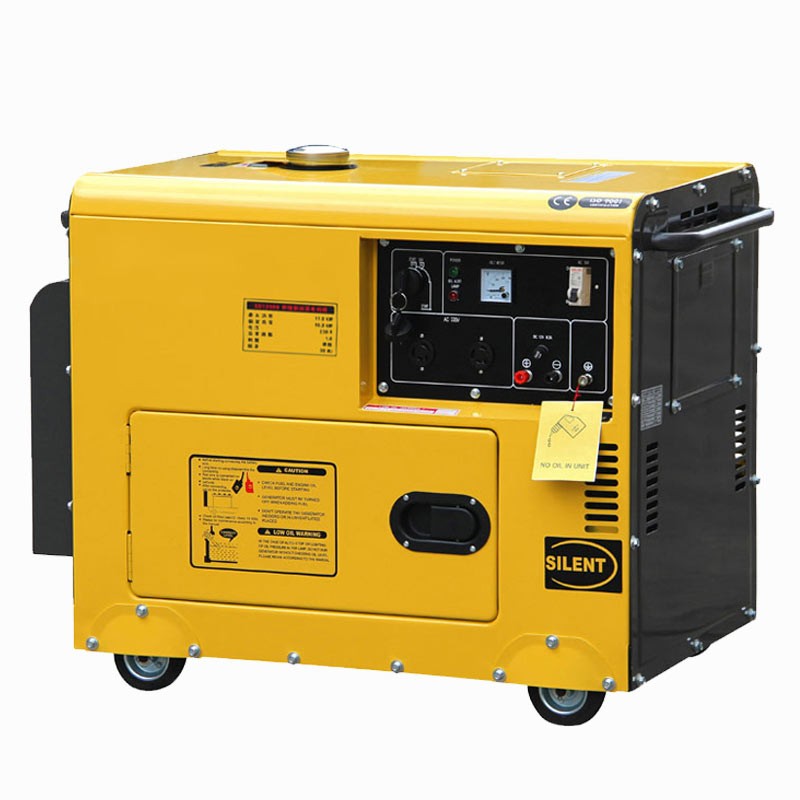

DG6500SE
GENERATOR Frequency(Hz) 50 60
Max.output(kW) 5.5 6.0
Rated output(kW) 5.0 5.5
Rated AC voltage(V) 120,220,230,240,120/240,220/380,230/400,240/415
Power factor(cosφ) 1
DC output(V/A) 12/8.3
Phase Single phase or Three phase
Alternator tvpe Self-excited
Starting system Electric
Noise level(at 7m)(dB) 68-72
Fuel tank capacity（*L） 16
Continuous work(hr) 8.5 7.8
ENGINE Model HR186FA
Engine type Single-cylinder,vertical,4-stroke air-cooled diesel engine
Bore*stroke(mm) 86x72
Displacement capacity(cc) 418
Fuel 0# or-10# light diesel oil
Lubrication oil volume(L) 1.4
Combustion system Direct injection
DIMENSIONS Dimension(L*W*H)(mm) 940*560*760
Gross weight(kg) 155
20FT 72
